Tetrapatch TFP8 8-channel AES-72 type-1M to 1/4" TRS adapter

Tetrapatch TFP8 8-channel AES-72 type-1M to 1/4" TRS adapter

$109.95 USD
$109.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left

The "Try It In Your Rack" Guarantee

30 days. Full refund. Free return shipping. Patch it in and you can decide for yourself.

8-channel adapter between AES72 and 1/4" TRS

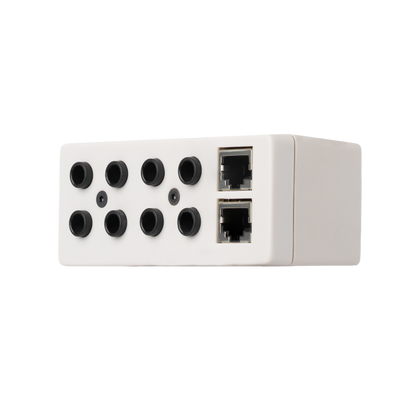

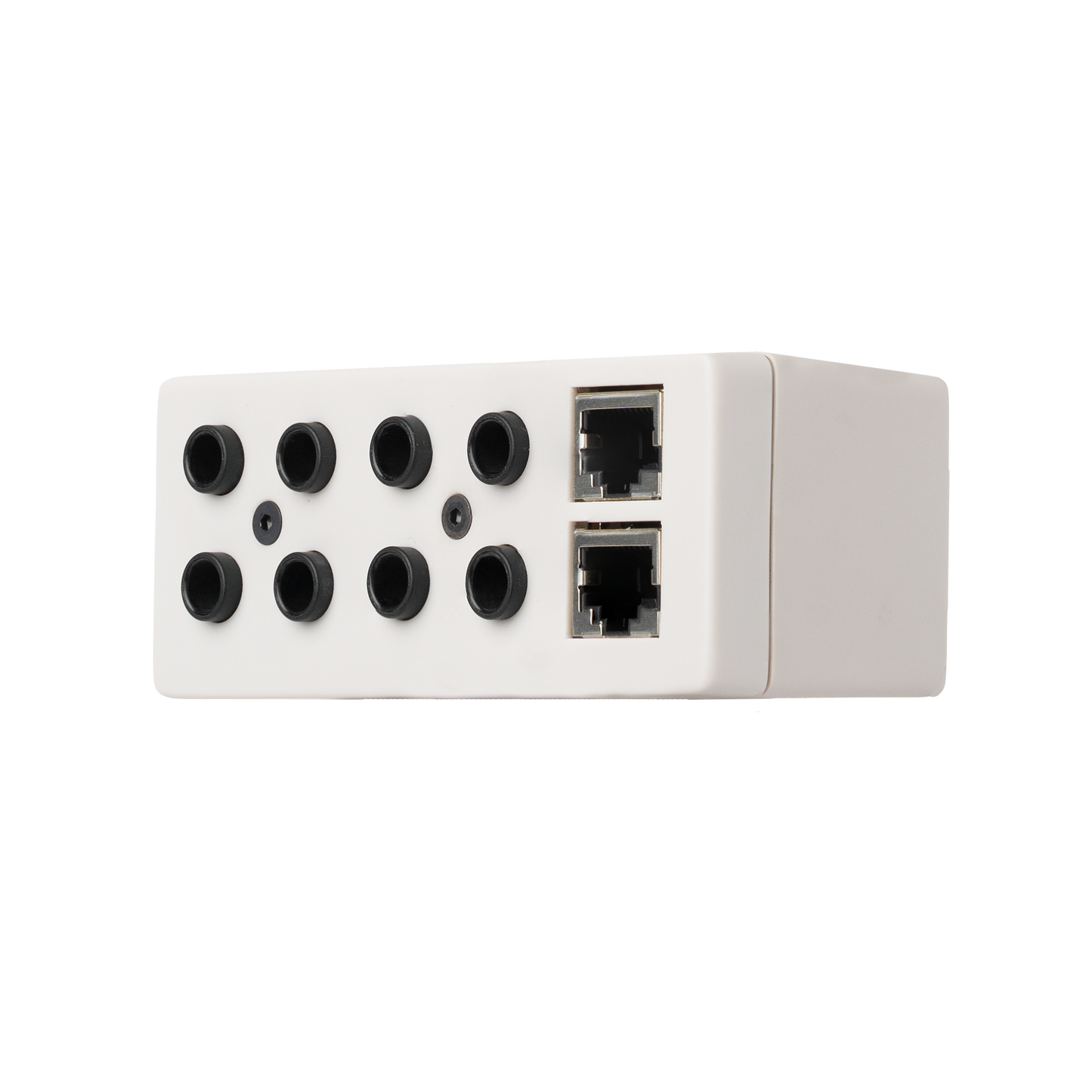

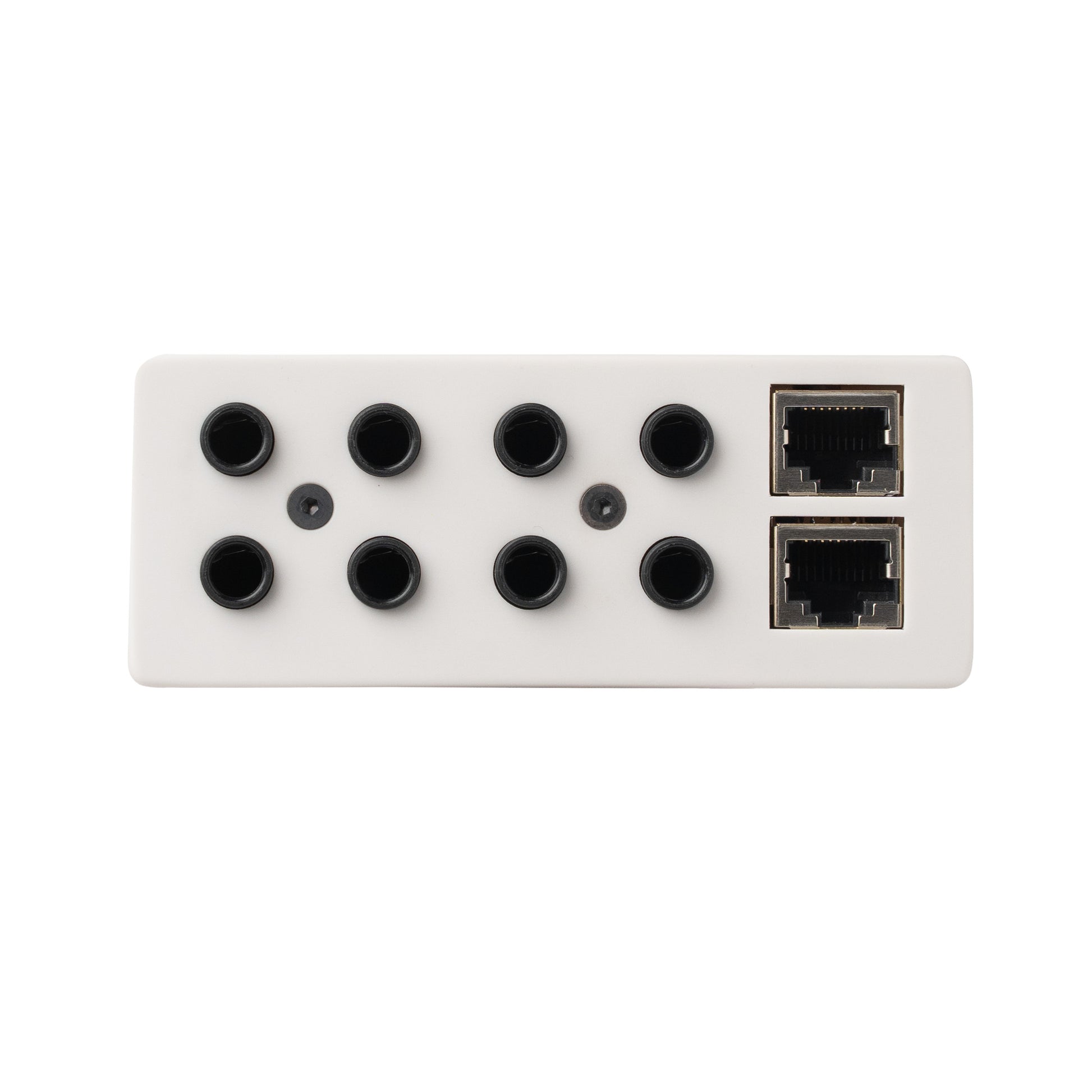

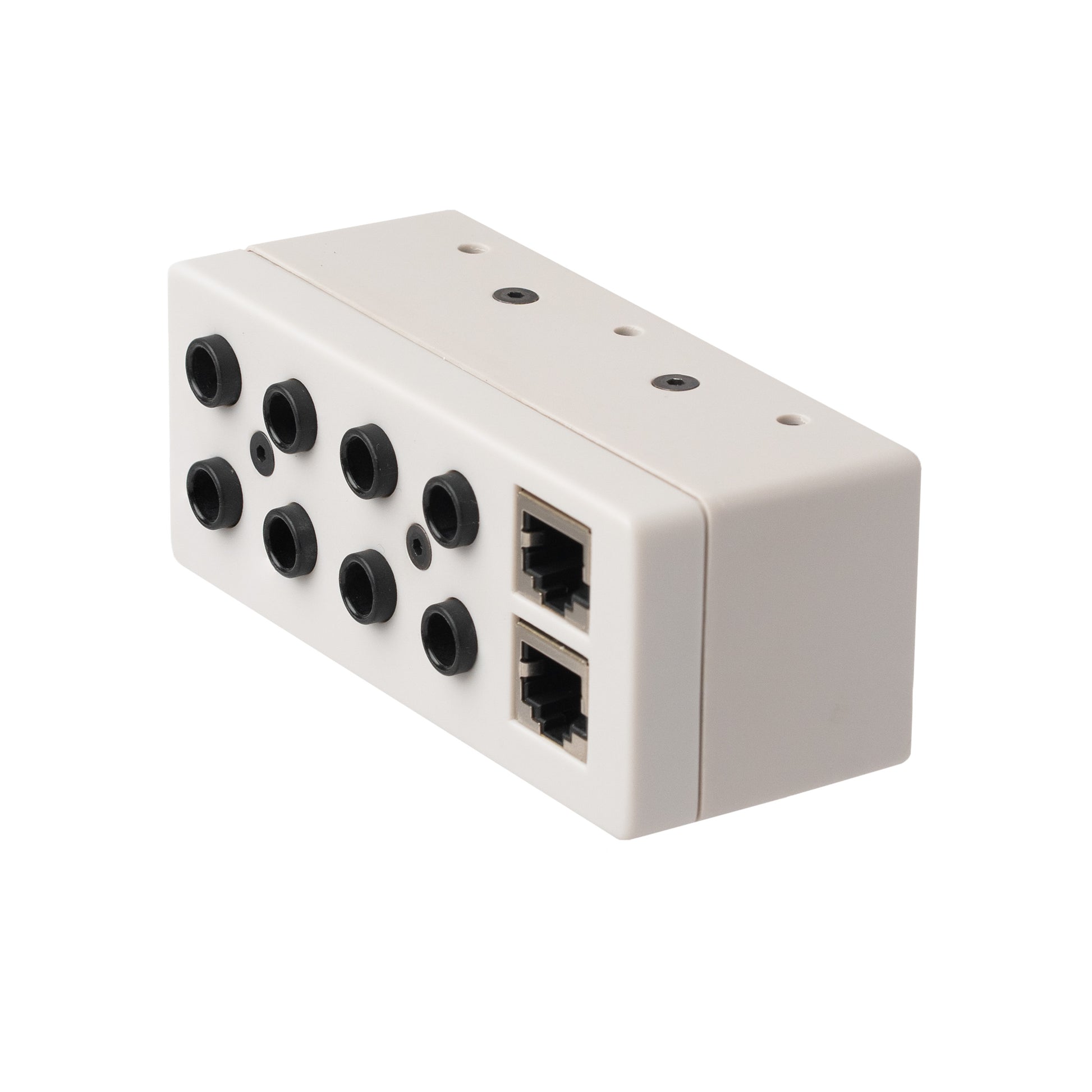

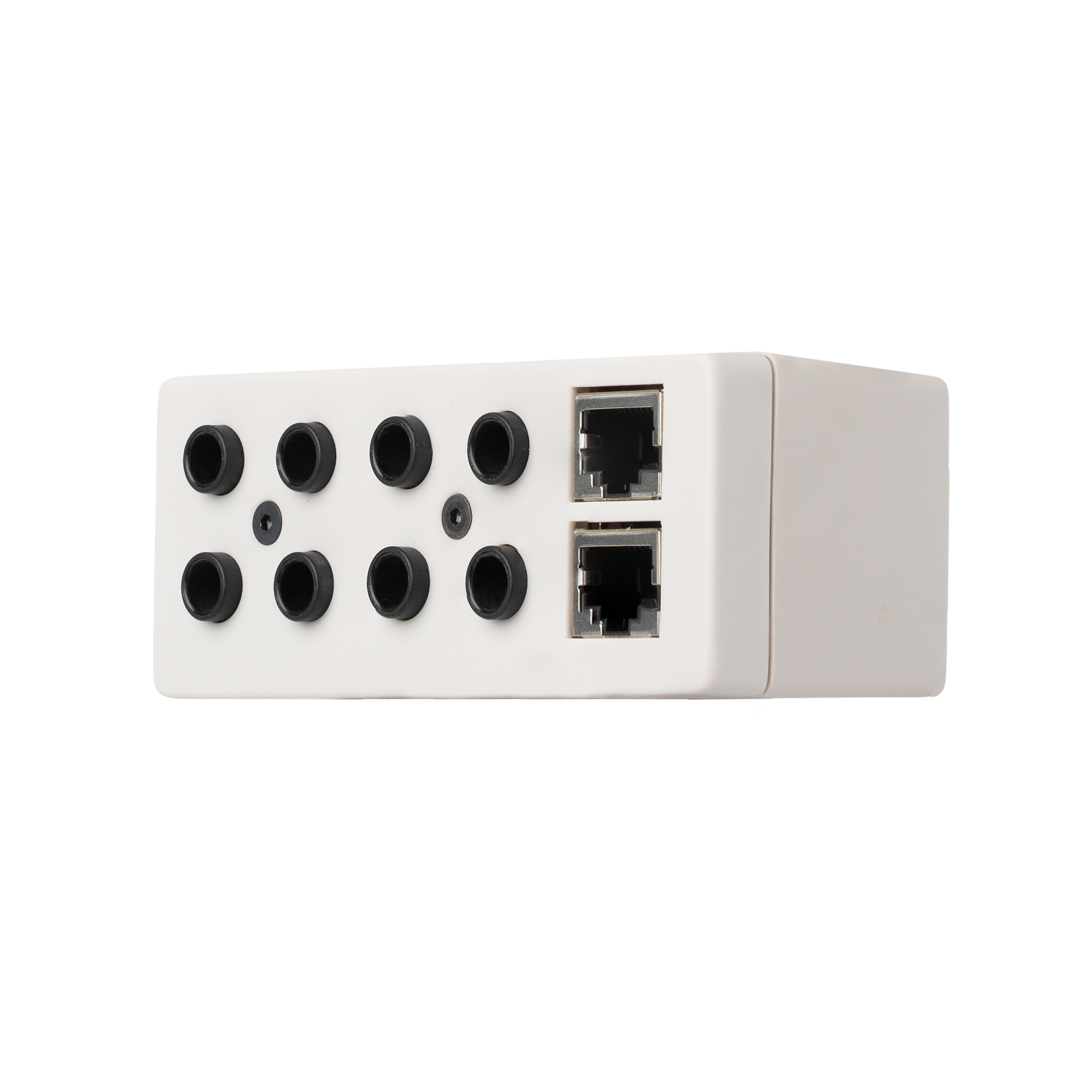

The TFP8 breaks eight channels of balanced (or unbalanced) 1/4" TRS out to two AES-72 RJ-45 connections, with the 1/4" jacks mounted at right angles to the RJ45s. Pair with a TRP8 on the other side for a complete 8-channel snake replacement over standard shielded CAT-6E or CAT-8 cable. Mountable to the HF100 and HF101.

Use it for

  • Replacing an 8-channel TRS snake between rack and desk, or rack and stage
  • Separating internal rack connections from external cable runs
  • Connecting a keyboard rig or outboard chain back into the studio over CAT-8 network cable
View full details

Frequently Asked Questions

  • The TFP8 converts 8 channels of balanced TRS audio into two RJ45 connections (4 channels per RJ45, per the AES-72 standard). Use it to send outputs from a console, interface, or outboard rack into a single pair of Cat cables.

  • No soldering. Plug your TRS cables into the 1/4" jacks like any other rack gear, then connect standard Cat cable to the RJ45s — same jack format as your router. That's the whole install.

  • There's not much to get wrong — TRS in from your gear, network cable out to the TRP8 on the other end. If a connection isn't right, unplug and re-seat it; nothing here locks you in.

  • Contact us directly — no tiered support, no forms first.

  • Yes, or any AES-72-compliant breakout. The TFP8 sends signal into a Cat cable; you need a corresponding adapter to break the signal back out to TRS at the destination. The TRP8 is the standard pair for this.

  • Yes, but you'll lose the noise rejection benefits of balanced operation. For long cable runs especially, balanced sources are strongly recommended.

  • Yes. Every Ashton Research product is covered by a one-year warranty against defects in materials and workmanship.

    If something goes wrong, contact us. No forms, no return authorization numbers, no hoops. We'll make it right.

    We build this gear to last well beyond the warranty period — but if it doesn't, that's on us.

  • You're paying to retire your TRS snake permanently on the source end. Wire your rack or outboard chain into the TFP8 once, and every future move is just unplugging Cat cable instead of re-tracing eight individual TRS runs.

  • Engineers and keyboard players choose the TFP8 when they want to retire a bulky 8-channel TRS snake but keep the 1/4" connections their gear already uses. It sends eight channels of balanced TRS down standard Cat cable in a compact, rack-mountable unit (it fits the HF100 and HF101), so an outboard chain or keyboard rig can run back to the desk over inexpensive network cable instead of a thick, costly multicore. And because it follows the open AES-72 standard rather than a proprietary one, you can pair it with any compliant breakout — you're never locked to a single vendor.
